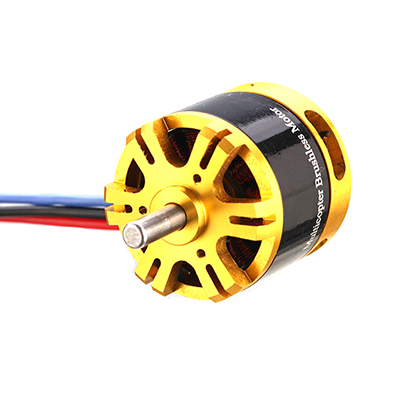

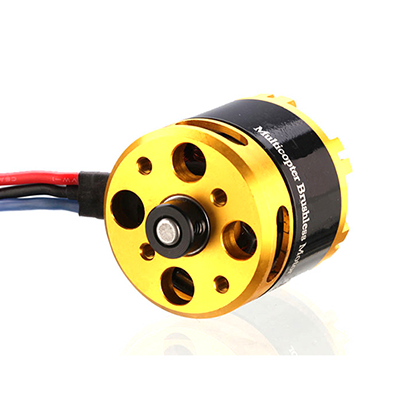

BE2814 2814 910KV 1280KV 1400KV出軸無刷電機
規格：
產品名稱：BE2814長軸
功率：910KV
拉力：1990克
電機尺寸：Φ35×36
電池：3-6s LIPO
規格：
KV .................................................... ................................................... ...... 910
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm

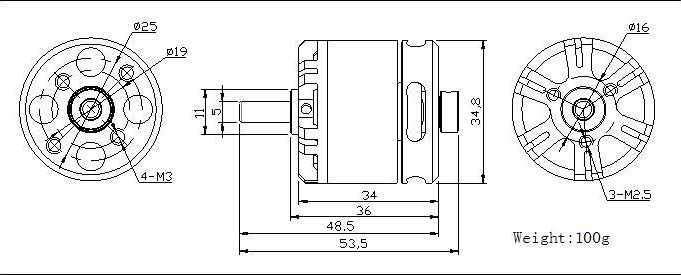

電機尺寸（直徑*長度）.................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量（Lipo）.................................... .......................................... 3-6S
最大持續電流（A）.............................................. ................ 34.2A
最大連續功率（W）..................................................... ...... 759瓦
內部電阻................................................ ..................... 0.061歐姆
規格：
KV .................................................... ................................................... ...... 1280
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸（直徑*長度）.................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量（Lipo）.................................... .......................................... 3-6S
最大持續電流（A）.............................................. ....... 38.5A
最大連續功率（W）..................................................... ............... 569W
內部電阻................................................ .................................... 0.022歐姆
規格：
KV .................................................... ................................................... ...... 1400
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸（直徑*長度）.................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量（Lipo）.................................... .......................................... 3-6S
最大持續電流（A）.............................................. ....... 42.8A
最大連續功率（W）..................................................... ............... 633W
內部電阻................................................ .................................... 0.015歐姆
KV .................................................... ................................................... ...... 910
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸（直徑*長度）.................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量（Lipo）.................................... .......................................... 3-6S
最大持續電流（A）.............................................. ................ 34.2A
最大連續功率（W）..................................................... ...... 759瓦
內部電阻................................................ ..................... 0.061歐姆
規格：
KV .................................................... ................................................... ...... 1280
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸（直徑*長度）.................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量（Lipo）.................................... .......................................... 3-6S
最大持續電流（A）.............................................. ....... 38.5A
最大連續功率（W）..................................................... ............... 569W
內部電阻................................................ .................................... 0.022歐姆
規格：
KV .................................................... ................................................... ...... 1400
組態................................................. ................................... NP
定子直徑................................................ .................................... 28mm
定子長度................................................ .......................................... 14mm
軸直徑................................................ ....................................... 5.0mm
電機尺寸（直徑*長度）.................................... .....Φ35×36毫米
重量.................................... ................................................... ...100克
電池?cái)?shù)量（Lipo）.................................... .......................................... 3-6S
最大持續電流（A）.............................................. ....... 42.8A
最大連續功率（W）..................................................... ............... 633W
內部電阻................................................ .................................... 0.015歐姆
